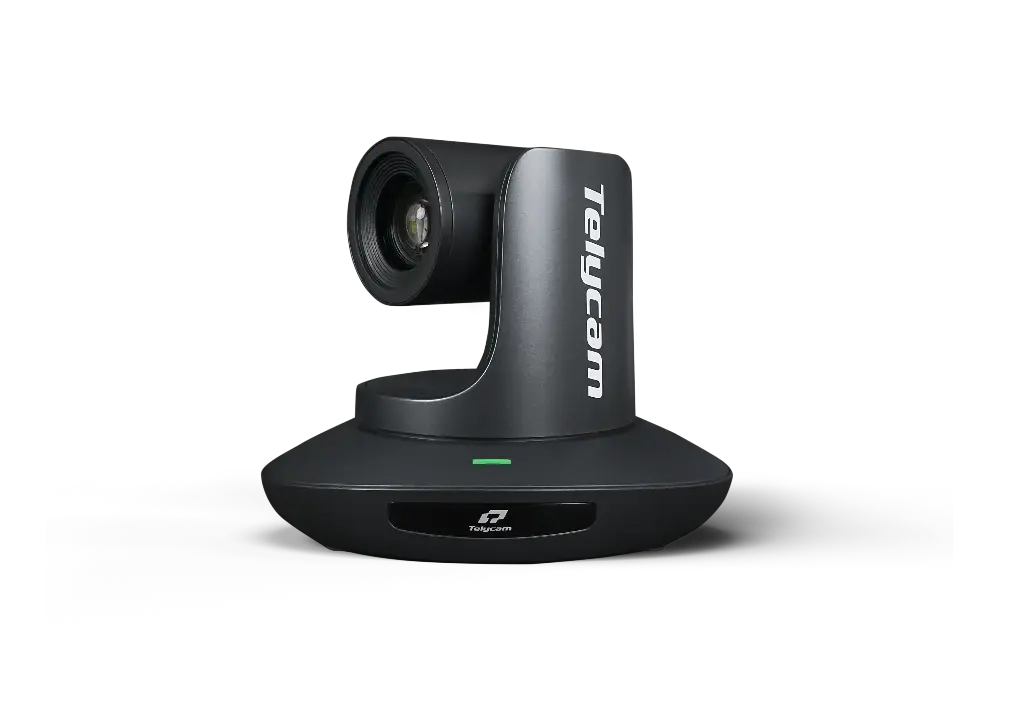

Telycam Drive+ SE 20X NDI®|HX2, 3G-SDI, USB3.0, 1080p
Telycam
Telycam utvikler avanserte videokameraer som forbedrer samhandling, kommunikasjon og samarbeid. Med innovative PTZ-kameraer og webcams optimalisert for direktesending, streaming og videokonferanser, leverer Telycam brukervennlige og pålitelige løsninger for profesjonelle miljøer.
Optics & Imaging
|
Specification |
Details |
SKU: | Black 3G-SDI: TLC-300-IP-20(NDI)-SE-SDI-BL | White 3G-SDI: TLC-300-IP-20(NDI)-SE-SDI-WH |
|
Image Sensor |
1/2.8-inch, 2.4MP CMOS sensor |
|
Optical Zoom |
20x optical zoom |
|
Lens |
f = 4.9mm ~ 98mm, F1.5 ~ F3.0 |
|
Horizontal Field of View |
60° (Wide) to 3.2° (Tele) |
|
Vertical Field of View |
34.14° to 1.12° |
|
Diagonal Field of View |
67.08° to 2.27° |
|
Minimum Working Distance |
1.0m |
|
Signal-to-Noise Ratio (S/N) |
≥50dB |
Video Output & Streaming
|
Specification |
Details |
|
HDMI/3G-SDI Output |
1920×1080p60/50/30/25/59.94/29.97/24/23.98; 1920×1080i60/50/59.94; 1280×720p60/50/30/25/59.94/29.97 |
|
NDI®|HX Output |
1920×1080@360fps; 1280×720@360fps; 1024×576@360fps; 640×360@360fps (low bandwidth mode) |
|
USB 3.0 Output |
1920×1080p60/50/30/25; 1280×720p60/50/30; 1280×720p25; 1024×576p30; 960×540p30; 640×360p30; 512×288p30 |
|
IP Streaming Codec |
H.264, H.265 |
|
Bitrate Control |
VBR, CBR |
|
Bitrate Range |
1024Kbps~16384Kbps |
|
Network Port Speed |
1000 Mbps |
|
Streaming Protocols |
NDI®|HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP, VISCA TCP, VISCA UDP, Pelco P/D, RTP Multicast, HTML |
Image Processing
|
Specification |
Details |
|
Noise Reduction |
2D & 3D |
|
Minimum Illumination |
0.7 Lux (50 IRE Max AGC, 1/30, F1.8) |
|
White Balance Modes |
Auto, Manual, ATW, Push, Indoor, Outdoor, Sodium, Fluorescent |
|
Exposure Modes |
Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority |
|
Anti-Flicker Options |
OFF, 50Hz, 60Hz |
|
Image Flip/Mirroring |
Supported |
|
Focus Control |
Auto/Manual |
|
Iris Control |
Auto/Manual |
|
Electronic Shutter Control |
Auto/Manual |
|
Gamma Correction |
Supported |
|
Backlight Compensation |
Supported |
Pan, Tilt & Control
|
Specification |
Details |
|
Pan Rotation Angle |
-170° to +170° |
|
Tilt Rotation Angle |
-30° to +90° |
|
Pan Speed Range |
0.1° to 120°/s |
|
Tilt Speed Range |
0.1° to 80°/s |
|
Number of Presets (Remote) |
10 |
|
Number of Presets (Serial Port) |
128 |
|
Control Interfaces |
RS232, RS485, NDI®|HX, USB 3.0 (UVC1.5), USB 2.0 (UVC1.1) |
Connectivity & I/O
|
Specification |
Details |
|
Video Output Ports |
HDMI or 3G-SDI (selectable), USB 3.0 |
|
Audio Input (Stereo 3.5mm Line-In) |
Supported |
|
Tally Light |
Supported |
|
Daisy Chain Support |
Supported |
Power & Environmental
|
Specification |
Details |
|
Power Input Voltage |
DC 12V, PoE+ (IEEE802.3at) |
|
Operating Temperature |
-10℃ to 50℃ |
|
Operating Humidity |
≤80% |
Physical & Design
|
Specification |
Details |
|
Dimensions (L×W×H) |
220mm × 190mm × 173mm |
|
Net Weight |
1.35 kg |
|
Color Options |
Black, White |
| Brand | |
|---|---|
| Manufacturer | Telycam |
| XXX - Modellserie | Drive+ |
| Technical | |
| Valgfri videoutgang | 3G-SDI or HDMI |
| Varianter | |
| Velg farge | Svart or Hvit |
