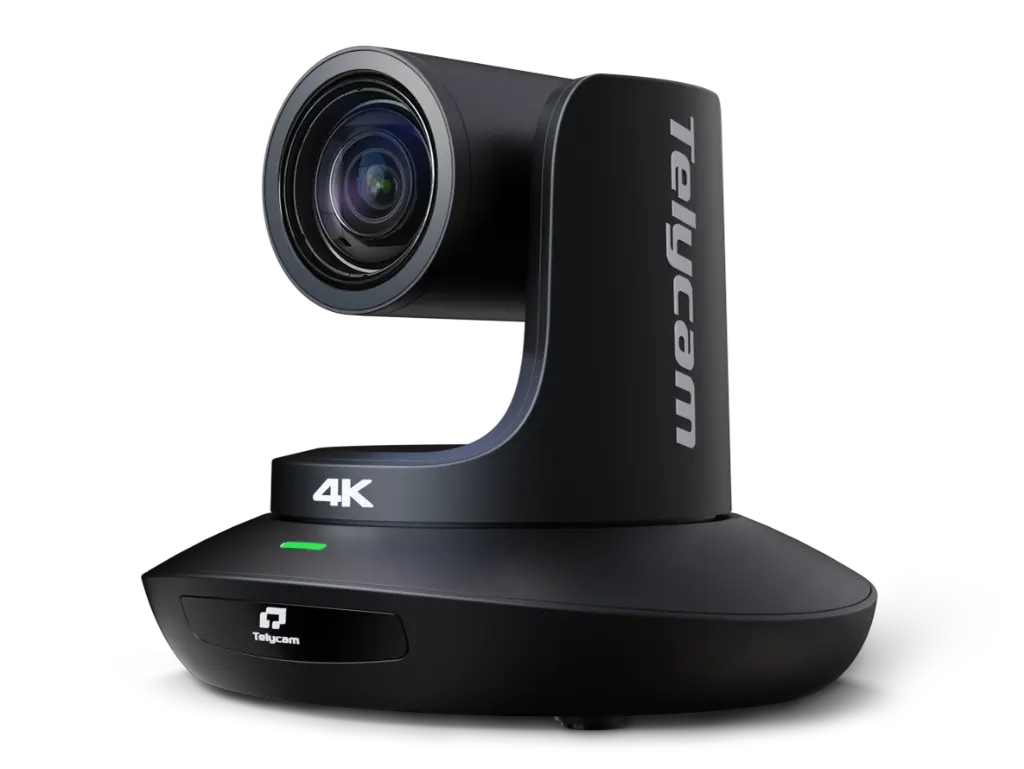

Telycam Vision+ 4KN 12X NDI®|HX2, HDMI2.0, 3G-SDI, USB, Line In, 2160p

https://www.sagaheroes.eu/web/image/product.template/21452/image_1920?unique=9614938

Login | Register to see price

Not Available For Sale

  • Manufacturer
  • Colour
  • Optisk Zoom
  • XXX - Ai Autotracking
  • XXX - Modellserie

This combination does not exist.

Contact Us
Telycam
Telycam

Telycam utvikler avanserte videokameraer som forbedrer samhandling, kommunikasjon og samarbeid. Med innovative PTZ-kameraer og webcams optimalisert for direktesending, streaming og videokonferanser, leverer Telycam brukervennlige og pålitelige løsninger for profesjonelle miljøer.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Optics & Imaging
Specification Vision+ 4KN 12x Vision+ 4KN 20x Vision+ 4KN 30x

SKU:

Black: TLC-300-IP-12-4K(NDI)-AB-BL
White: TLC-300-IP-12-4K(NDI)-AB-WH

Black: TLC-700-IP-20-4K(NDI)-AB-BL
White: TLC-700-IP-20-4K(NDI)-AB-WH

Black: TLC-700-IP-30-4K(NDI)-AB-BL
White: TLC-700-IP-30-4K(NDI)-AB-WH

Image Sensor 1/2.8 inch, 9MP UHD CMOS sensor 1/1.8 inch, 9MP UHD CMOS sensor 1/1.8 inch, 9MP UHD CMOS sensor
Optical Zoom 12X optical zoom 20X optical zoom 30X optical zoom
Lens f=3.4mm~40.3 mm, F1.8~F3.6 f=6.25mm~112.5 mm, F1.58~F3.95 f= 6.91~214.64mm, F1.35~F4.6
Field of View (Horizontal) 80.5°(Wide)~7.6°(Tele) 61°(Wide)~3.5°(Tele) 63°(Wide)~2.1°(Tele)
Field of View (Vertical) 50.0°~4.4° 34.1°~1.9° 34.14°~1.12°
Field of View (Diagonal) 88.9°~8.7° 60.7°~3.5° 67.08°~2.27°
Minimum Working Distance (Tele) 1.0m 1.0m 1.5m
Signal-to-Noise Ratio (S/N) ≥50dB ≥50dB ≥50dB

Video Output & Streaming
HDMI 2.0 Output Up to 4K 60 fps
3G-SDI Output Up to 1080p 60 fps
NDI®/NDI® HX Output
USB Type-C Output Up to 4K 30 fps
IP Streaming Codec H.264, H.265
Bitrate Control VBR, CBR
Bitrate Range 1024Kbps~122800Kbps
Network Port Speed 1000 Mbps
Streaming Protocols NDI®HX, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC
Image Processing
Noise Reduction 2D & 3D
Minimum Illumination 0.5 Lux (50 IRE Max AGC, 1/30, F1.8)
White Balance Modes Auto, Manual, ATW, Push, Indoor, Outdoor, Color Temperature
Exposure Modes Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Anti-Flicker Options OFF, 50Hz, 60Hz
Image Flip/Mirroring Supported
Focus Control Auto/Manual
Iris Control Auto/Manual
Electronic Shutter Control Auto/Manual
Gamma Correction Supported
Backlight Compensation Supported
Pan, Tilt & Control
Pan Rotation Angle -176° to +176° -176° to +176° -176° to +176°
Tilt Rotation Angle -30° to +90° -30° to +90° -30° to +90°
Pan Rotation Speed 0.1°~120°/s 0.1°~120°/s 0.1°~80°/s
Tilt Rotation Speed: 0.1°~80°/s 0.1°~80°/s 0.1° to 60°/s
Number of Presets (Remote) 10 10 10
Number of Presets (Serial Port) 256 256 256
Preset Accuracy 0.1° 0.1° 0.1°
Control Interfaces RS232(RS485), NDI®HX RS232(RS485), NDI®HX RS232(RS485), NDI®HX
Connectivity & I/O
Video Output Ports NDI®HX, HDMI 2.0, 3G-SDl, USB Type-C
Audio Input (Mini XLR) Not Supported
Audio Input (Stereo 3.5mm Line-In) Supported
PoE Power Supported
Tally Light Supported
Daisy Chain Support Yes
Power & Environmental
Power Input Voltage DC 12V
Power over Ethernet (PoE+) IEEE802.3at Supported
Operating Temperature -10℃ to 50℃
Operating Humidity ≤80%
Physical & Design
Dimensions (L×W×H) 220mm x 190mm x 173mm 220mm x 190mm x 193,5mm 220mm x 190mm x 193,5mm
Net Weight 1.5kg (3.3LBS) 1.9kg (4.2LBS) 1.9kg (4.2LBS)
Color Options Black, White Black, White Black, White



Brand
Manufacturer Telycam
XXX - Modellserie Vision+
Description
Colour Black or White
Technical
XXX - Ai Autotracking True
Others
Optisk Zoom 12x or 20x or 30x
