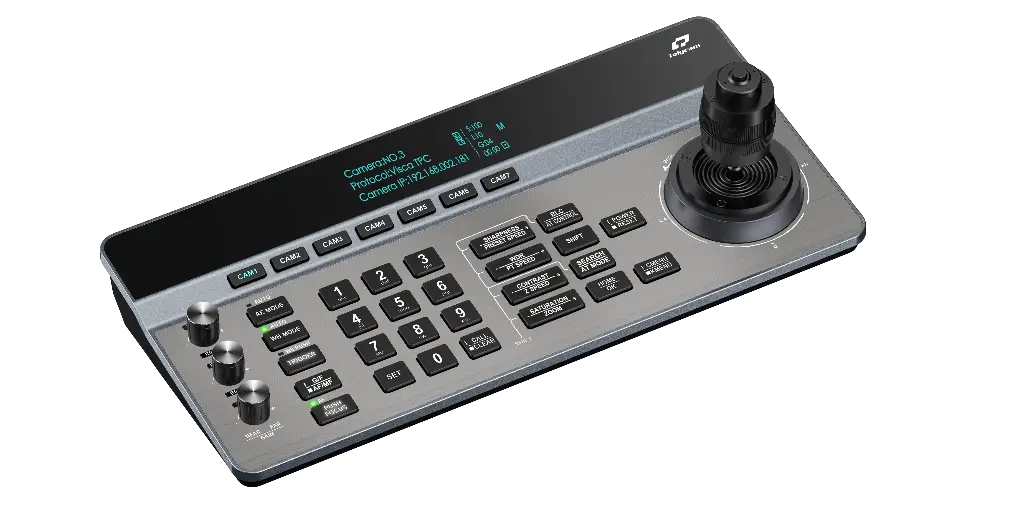

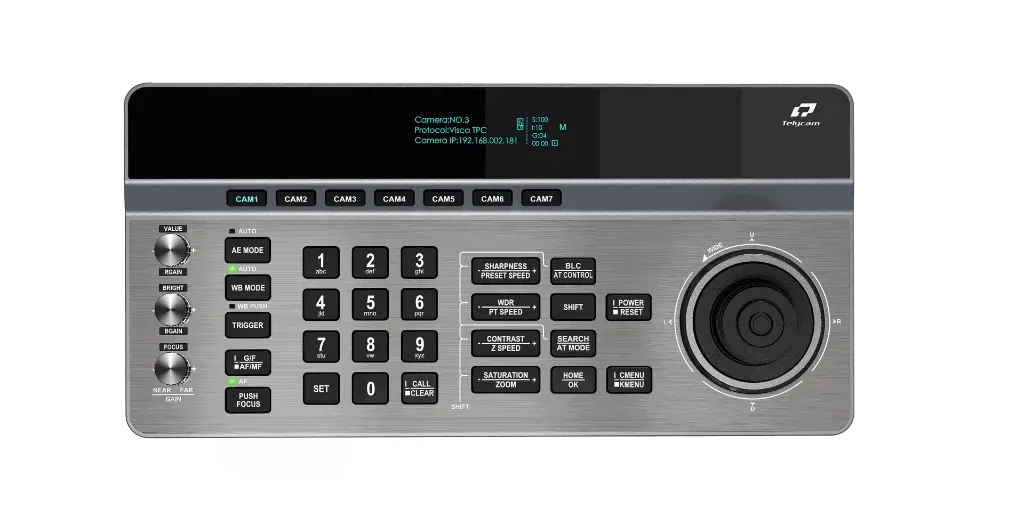

Telycam V-Joy+ AT NDI, VISCA, ONVIF, PELCO P/D, Auto Tracking, RS422, RS232, RS485

Control Ports

NDI®|HX, RS232, RS422, RS485

Control Protocols

NDI®|HX, VISCA Serial, PELCO-P, PELCO-D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF

Auto Tracking

Supported; customizable settings including Tracking Switch, Target Position, PT Limitation, Initial Position, and Blackboard Area

Camera Shortcuts

7 dedicated shortcut keys for quick camera selection

Preset Positions

Up to 256 presets per camera

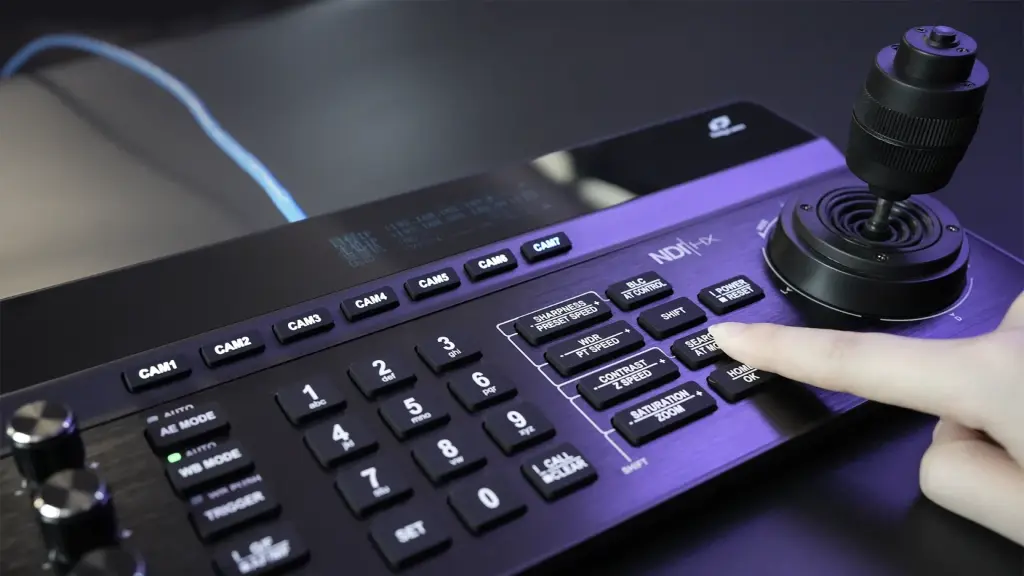

Joystick

4D joystick for Pan, Tilt, Zoom, and Auto-focus control

Function Controls

Dedicated sections for AE (Auto Exposure), AF (Auto Focus), AWB (Auto White Balance), Presets, and Multi-functions

LCD Screen

3.12-inch OLED screen, blue light, 256×64 pixel resolution

RJ45 Port

Ethernet port with PoE support (IEEE802.3af)

RS232 Port

DB9 Male connector

RS422 Port

3.81mm spacing terminal (T+, T−, R+, R−)

RS485 Port

3.81mm spacing terminal (T+, T−)

Upgrade Port

Type-C

Working Power

12V, 1A

Operating Temperature

-10℃ to 50℃

Operating Humidity

20% to 80%

Storage Temperature

-20℃ to 60℃

Storage Humidity

≤90%

Dimensions (L×W×H)

320.5mm × 156.5mm × 118mm

Net Weight

1.05 kg
